Maxwell's Unification
James Clerk Maxwell's equations established that time-varying electric and magnetic fields propagate as self-sustaining transverse waves, unifying electricity, magnetism, and optics into a single framework.
Interactive
Spectrum Explorer
Slide across the frequencies to uncover the physical realities and applications of each band, all governed by the universal relationship c = λf.
Low frequencyHigh frequency
Radio & Microwaves
< 300 GHz · > 1 mm · 10⁻¹⁰ – 10⁻² eV
The foundation of modern communication. Operating in the macroscopic realm, these photons are too weak to interact with atomic states, so they easily pass through standard building materials and human tissue undetected.
Physical Mechanism: Accelerating Charges & Electronic Oscillators (Macro-Structures)
Applications: AM/FM, Cellular Networks, GPS, MRI, Radio Astronomy.
Visual Field Guide
Mapping the Unseen
Five companion infographics translate the mathematics of the spectrum into pictures you can actually read — starting with the signature view of a single ordinary morning.

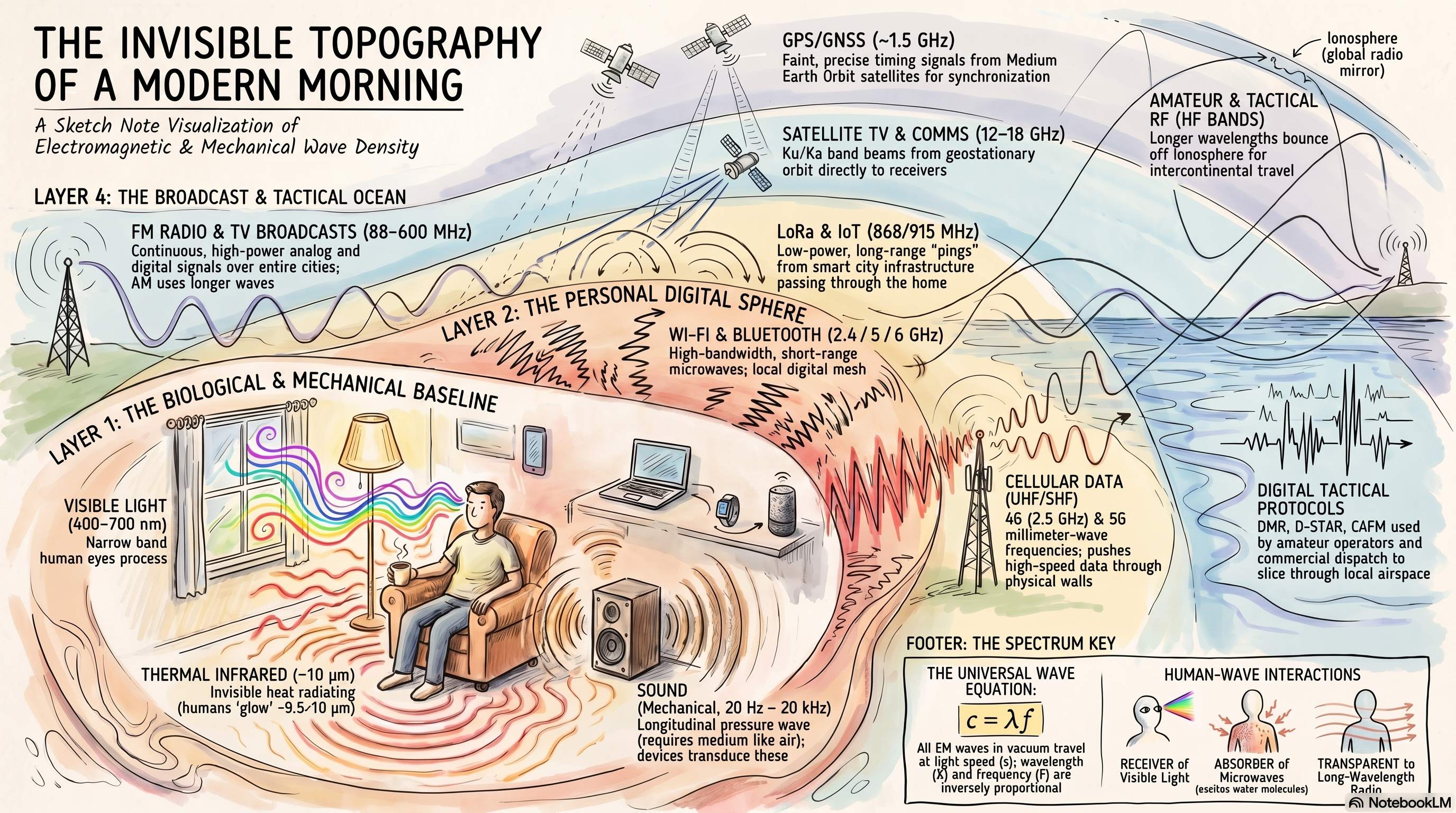

The Invisible Topography of a Modern Morning
A sketch-note visualization of the electromagnetic and mechanical wave density filling an ordinary room — visible light, thermal infrared, sound, Wi-Fi, cellular, broadcast, satellite, and GPS all coexisting through superposition.

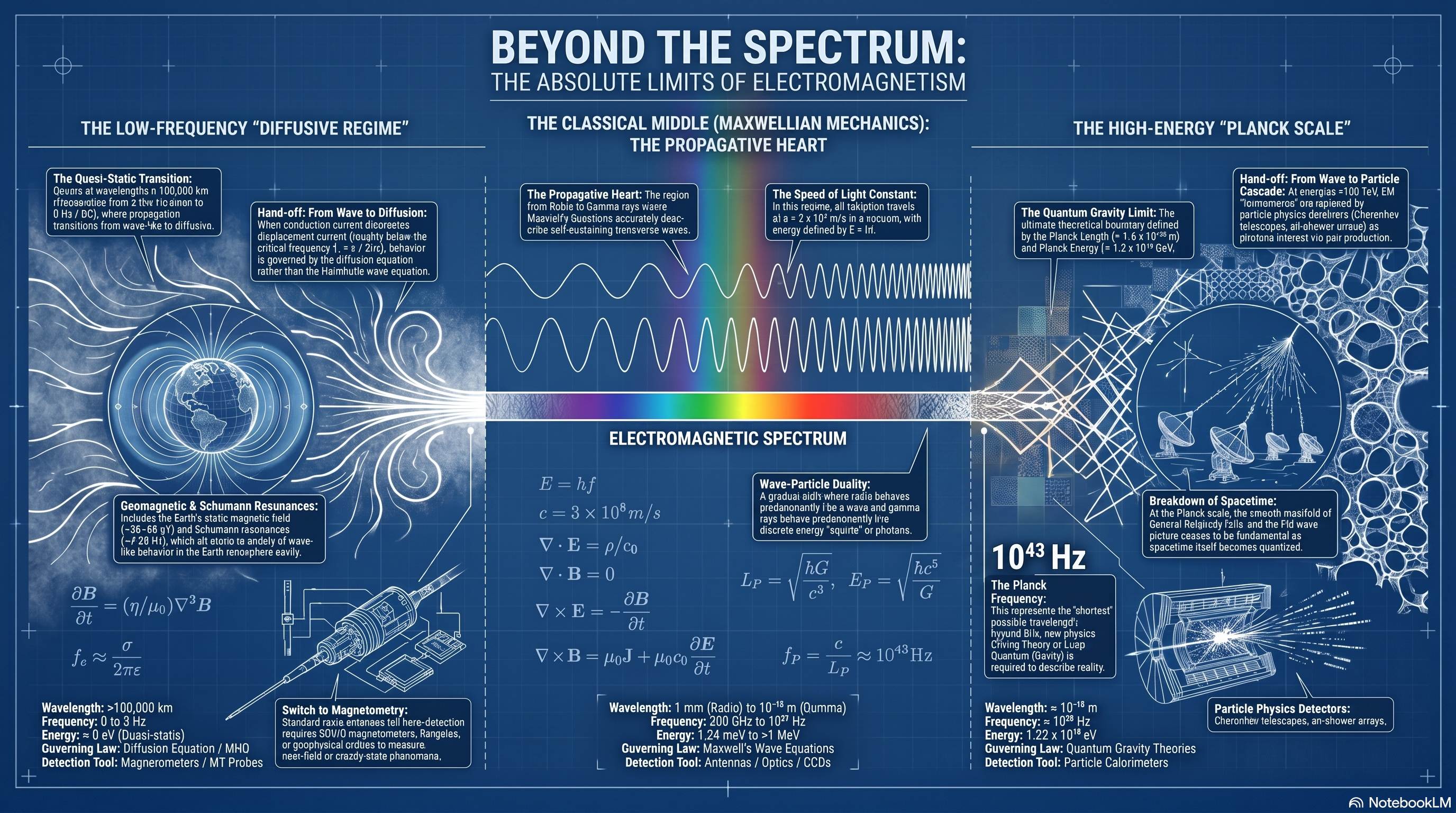

Beyond the Spectrum
The absolute limits of electromagnetism — from the low-frequency diffusive regime through the Maxwellian classical middle to the high-energy Planck scale, where spacetime itself becomes quantized.

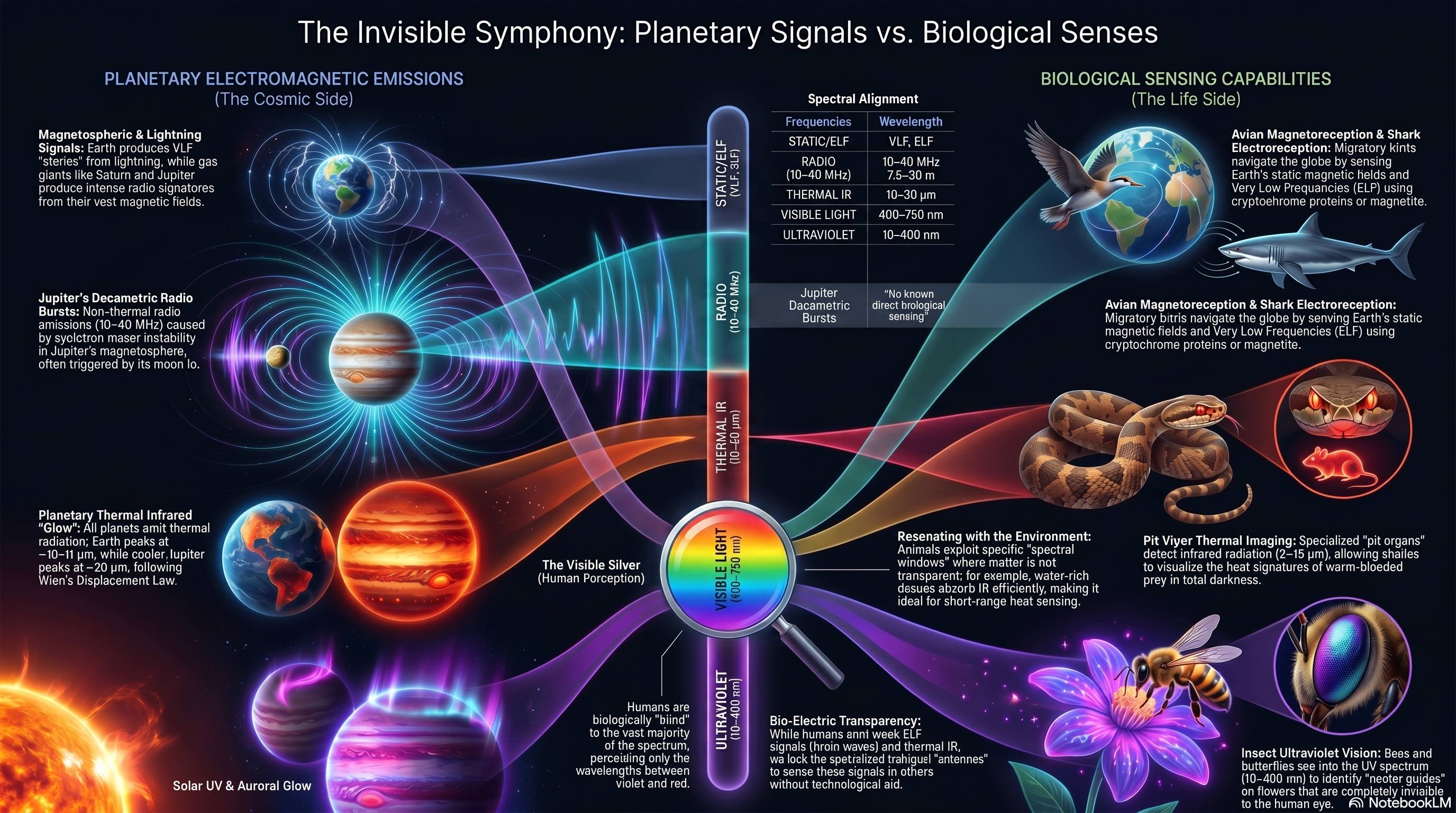

The Invisible Symphony
Planetary electromagnetic emissions — Jupiter's decametric bursts, planetary thermal glow, solar UV — set against the biological senses that evolved to read them: avian magnetoreception, pit-viper thermal imaging, and insect UV vision.

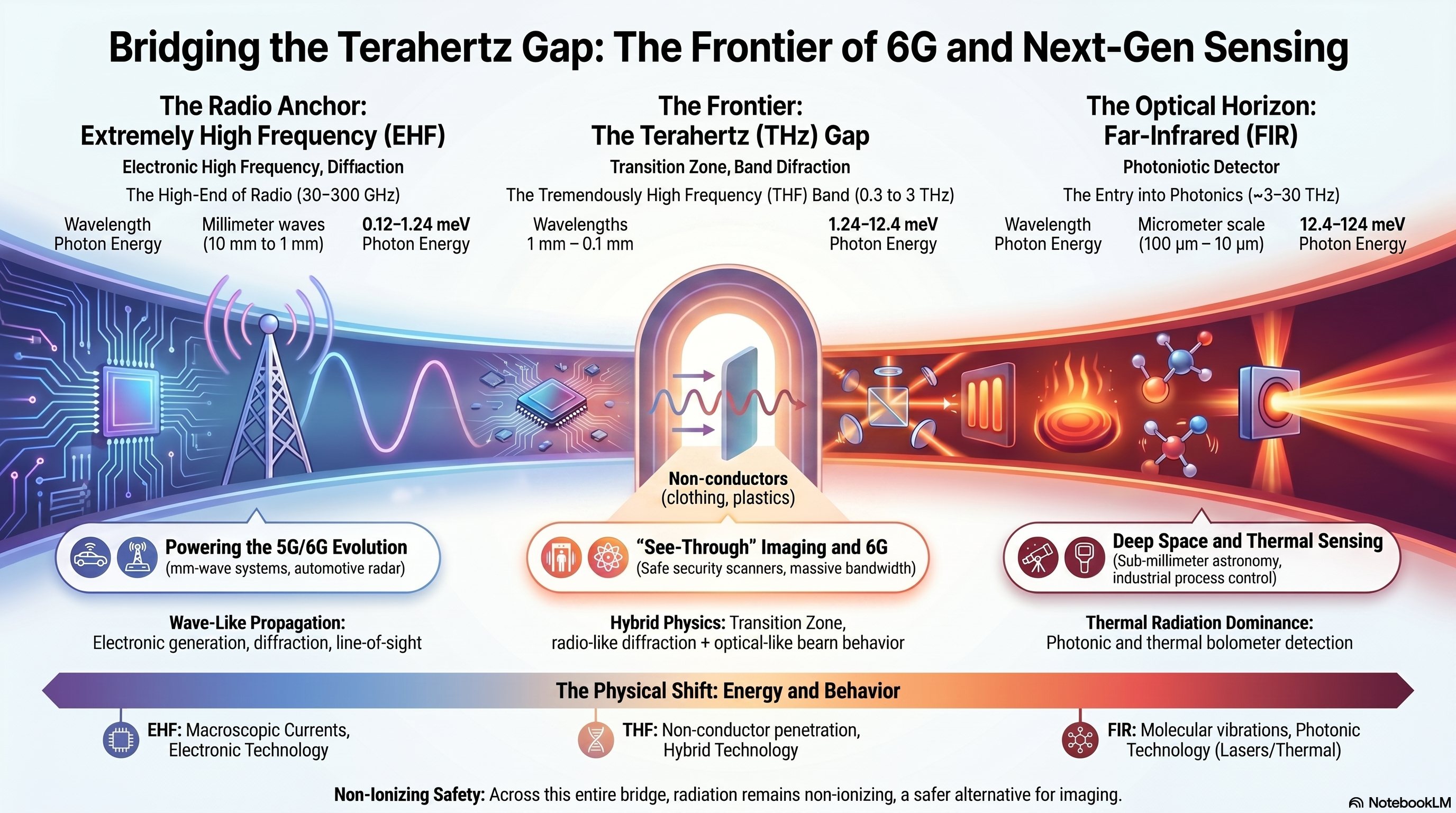

Bridging the Terahertz Gap
The frontier of 6G and next-gen sensing — how the THz band bridges Extremely High Frequency radio and Far-Infrared photonics, enabling see-through imaging and massive bandwidth while staying non-ionizing.

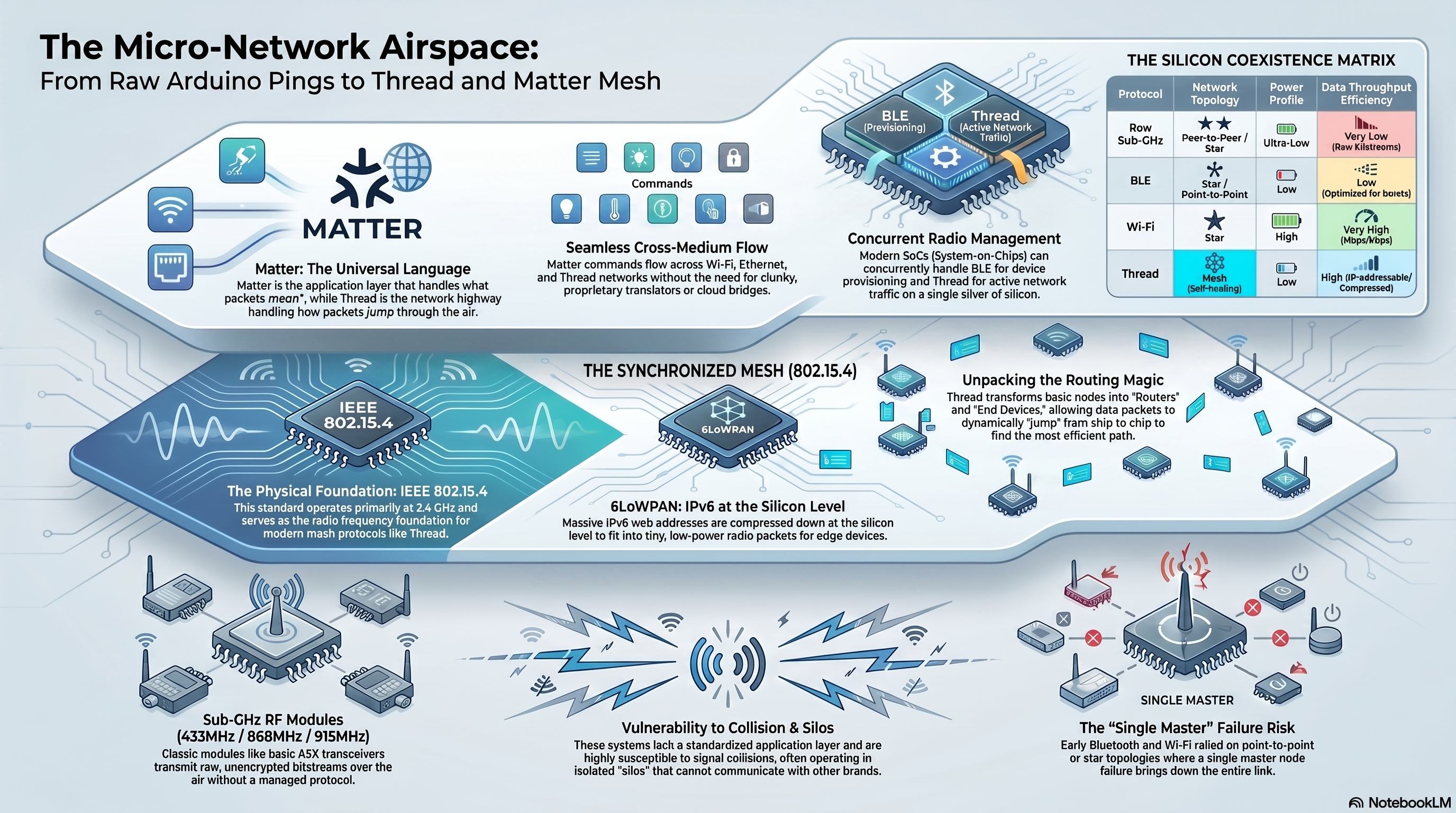

The Micro-Network Airspace
From raw Arduino pings to Thread and Matter mesh — how the IEEE 802.15.4 physical layer, 6LoWPAN, and concurrent radio management turned isolated RF silos into self-healing, IP-addressable networks.
Foundations
Core Concepts
The principles that turn an abstract spectrum into a working physical theory — from classical electrodynamics to the chaos of the electromagnetic city.
The Shrinking Source Law
As electromagnetic energy geometrically increases, the physical mechanism required to generate it violently shrinks in scale: from macro-antennas (Radio), to vibrating bonds (Infrared), to electron cloud transitions (Visible/UV), down to the nucleus itself (Gamma).
The Biological Boundary
The 10 eV Threshold separates non-ionizing from ionizing radiation. Below 10 eV, photons merely excite matter (heat/vibration). Above it, a single photon carries enough kinetic energy to knock electrons completely out of orbit, shattering DNA regardless of cumulative heat.
The Spectrum in Transit
A wave's journey is a gauntlet of scattering and absorption. Oxygen and ozone form an impenetrable wall against lethal UV and X-rays, while water vapor absorbs specific infrared and microwave bands, leaving only narrow 'windows' for astronomy and telecom.
Collision Kinetics
High-energy photons collide with matter in distinct ways: Thomson scattering (elastic), the photoelectric effect (complete absorption with inner-shell ejection), Compton scattering (momentum transfer), and pair production (energy converting entirely to an electron-positron pair).
The Cosmic Speed Limit
Vacuum is not 'nothing.' It has precise physical properties (permittivity and permeability) that dictate the absolute speed limit of the universe (c). When entering a medium, the phase velocity drops, causing wavelengths to compress and trajectories to bend (Snell's Law).
Reference
Spectral Topology
The full electromagnetic spectrum at a glance — frequency, wavelength, and photon energy across seven orders of physical reality.
| Region | Frequency | Wavelength | Photon Energy |
|---|---|---|---|
| Gamma Rays | > 30 EHz | < 10 pm | 10⁵ – 10⁹ eV |
| X-Rays | 30 PHz – 30 EHz | 10 nm – 10 pm | 10³ – 10⁵ eV |
| Ultraviolet (UV) | 750 THz – 30 PHz | 400 nm – 10 nm | 3 – 1000 eV |
| Visible Light | 400 THz – 750 THz | 750 nm – 400 nm | 1.6 – 3 eV |
| Infrared (IR) | 3 THz – 400 THz | 100 µm – 750 nm | 0.01 – 1.6 eV |
| Terahertz (THz) Gap | 300 GHz – 3 THz | 1 mm – 0.1 mm | 10⁻³ – 10⁻² eV |
| Radio & Microwaves | < 300 GHz | > 1 mm | 10⁻¹⁰ – 10⁻² eV |
Interactive
RF & Comms Explorer
Zoom into the radio bands that carry modern communication — from ionosphere-bouncing HAM shortwave to LEO satellite broadband. Slide through HF, VHF, UHF/PMR, LoRa, BLE, Wi-Fi, and Starlink.
Long range / low dataShort range / high data
HF Shortwave (HAM)
3 – 30 MHz · 100 – 10 m · Ground & sky wave
The classic amateur radio domain. HF signals refract off the ionosphere, bouncing between Earth and the charged upper atmosphere to achieve intercontinental 'skip' with modest power — no infrastructure required.
Applications: Amateur (HAM) DX, maritime, aviation, emergency comms.
The Curriculum
Five Core Domains
A multidisciplinary synthesis bridging abstract physics with tangible, cutting-edge applications across five logically segmented domains.
I
Theoretical Electrodynamics & Wave Mechanics
The fundamental physics governing EM radiation, examined at the vector and quantum levels.
Maxwell's Architecture
Maxwell's equations in free space and dielectric media show how time-varying electric and magnetic fields self-sustain as transverse waves — covering the Poynting vector, energy-momentum tensors, and phase velocity.
Wave-Particle Duality
The dichotomy between classical propagation and quantum photon energies: Planck's constant, atomic excitations, and blackbody radiation.
Interaction with Matter
How radiation traverses, reflects, or absorbs — marking the boundary between non-ionizing excitation and ionizing atomic disruption.
II
Biological Sensing & Environmental Propagation
How EM waves interact with the natural world and biological organisms across complex terrains.
Signal Dynamics in Terrain
Contrasts aggressive metallic attenuation within concrete urban canyons against the molecular absorption of RF energy by polar water in dense forests.
The Atmospheric "Brick Wall"
H₂O, CO₂, and O₃ heavily absorb specific THz, IR, and UV bands — shielding the planet while dictating usable communication windows.
Biological Electro-Sensitivity
Avian magnetoreception, elasmobranch electroreception, and pit-viper thermal-infrared detection extend perception beyond the human band.
III
Interplanetary Telecommunications
Engineering required to maintain data links across astronomical distances.
Deep Space Networks
Global tracking facilities (NASA DSN, ESA Estrack) evolving from legacy S-band to high-throughput X-band and Ka-band infrastructure.
Protocols & Standards
CCSDS, Space Link Extension (SLE), Cross Support Transfer Services, and Delay-Tolerant Networking toward a Solar System Internet.
Transponder Hardware
The Iris transponder: software-defined reconfigurability, forward error correction (LDPC, Reed-Solomon), and Doppler extraction.
IV
Spectrum Coexistence & Interference
The friction between active RF broadcasting and passive scientific observation in contested orbits.
The Constellation Crisis
LEO mega-constellations (Starlink, OneWeb) and the threat of out-of-band emission leakage blinding sensitive radio astronomy.
Mitigation Engineering
Real-time Uninformed Doppler Compensation, spatial projection filters, and dynamic spectrum sharing for RFI excision.
Operational Data Sharing
Automated observatory–operator communication enabling Telescope Boresight Avoidance to preserve dark and quiet skies.
V
The Search for Extraterrestrial Intelligence
Advanced signal processing hunting for engineered technosignatures amidst astrophysical noise.
The Cosmic Haystack
Detecting intermittent narrowband beacons and pulsed lasers via the Green Bank Telescope, Allen Telescope Array, and FAST.
Accelerated Computing
From volunteer-driven SETI@home to GPU-accelerated pipelines (TurboSETI) processing terabits of baseband voltage data.
Machine Learning
Convolutional Variational Autoencoders separating genuine anomalies from human-generated RFI in semi-unsupervised hunts.
